G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable
G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable
Kontakt

G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable

Min Bestellmenge : 1 km Verpackung Informationen : 2/3/4/5 km in einer hölzernen Trommel
Lieferzeit : 3-5 Tage Zahlungsbedingungen : L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit : 30km pro Tag
Herkunftsort: Guangzhou China Markenname: JQ/OEM/Customize
Zertifizierung: ISO9001 ROHS CE FCC SDOC Modellnummer: Gydts/OPLC

Detailinformationen
Jackenmaterial: PE, MDPE, LSZH, HDPE Außendurchmesser: 9mm
Faserzahl: 2-144Core Struktur: Einheitliche Röhre/Strahlverwickeltes Kabel
Stärke Mitglied: Stahldraht/Glasgarne aus BFW Produktname: Hybride Glasfaserkabel
Fasertyp: YOFC oder auf Anfrage Anwendung: Antennen-, Kanal- und Überkopfinstallation
Farbe: Schwarz Länge: 2 km oder maßgeschneiderte Länge
Hervorheben:

6 core hybrid optical cable

,

OPLC outdoor communication cable

,

hybrid fiber optic cable with copper wires

Produkt-Beschreibung

G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC GYDTW/GYDTS



Hybrid Cable 2–24 Core GYXTW With Two Copper Power Wires



Composite hybrid fiber optic cables combine optical fibers and metal conductors in a single bundle, providing multiple transmission paths while reducing installation cost and time.



Construction:

  • Fiber: 250μm fibers in high-modulus loose tubes filled with water-resistant compound.

  • Armor: Tube wrapped with longitudinal PSP and water-blocking material for compactness and waterproofing.

  • Strength Member: Two parallel steel wires alongside the steel tape.

  • Outer Jacket: Durable polyethylene (PE) sheath.



Features

  • Excellent mechanical and temperature performance

  • Hydrolysis-resistant high-strength loose tube

  • Water-blocking filling compound for fiber protection

  • Compact, lightweight, flexible, and bend-resistant

  • Low dispersion and attenuation

  • Steel wire and corrugated steel tape armor for moisture and crush resistance



Optical Fiber Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%







Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores		 Diameter
(mm)		 Copper
Wire
(mm)		 Linear
mass
(kgk
m)		 Tensile Crush Bending
radius
Short
Term
(N)		 Long
Term
(N)		 Short
lerm
N)		 Long
Term
(N)		 short
Term
N)		 Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D





Product Image

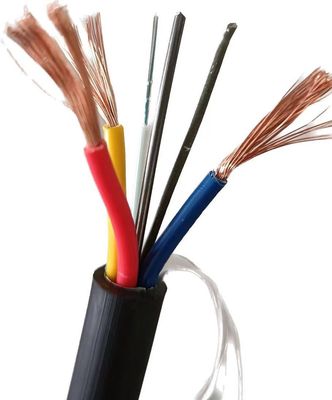

G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable 0

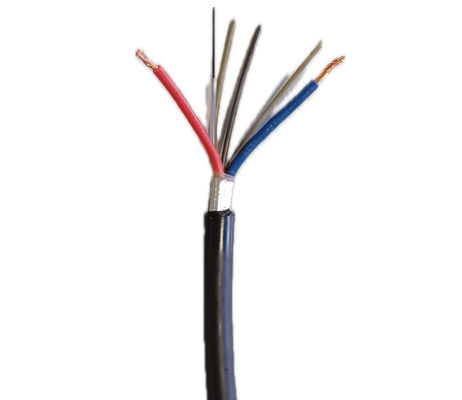

G652D 6 Core Hybrid Optical Cable With 2 Copper Power Wires OPLC Outdoor Communication Cable 1



Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.



Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:5-8work days





FAQ



Are you a trading company or manufacturer?

We are a manufacturer with 10+ years of experience in R&D and production of fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou, China – welcome to visit!



How about product quality?

All fibers are tested before delivery. Free samples are available upon request to check quality after price confirmation.



Do you accept small orders?

Yes, small orders are welcome. We support new projects, as all businesses often start small.



What is the delivery time?

Usually 3–7 working days, depending on order quantity. We ensure prompt shipment after payment.



Do you offer OEM service?

Yes, we provide OEM. Your logo can be printed, and customized ideas are welcome.
