Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Kontakt

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Min Bestellmenge : 50pcs Verpackung Informationen : PE -Beutel oder Plastikbox und Cartoonbox
Lieferzeit : 3-5 Arbeitstage Zahlungsbedingungen : Western Union, t/t, l/c
Versorgungsmaterial-Fähigkeit : 30000pcs pro Tag
Herkunftsort: Guangzhou, China Markenname: JQ/OEM/Customize
Zertifizierung: ISO 9001,ROHS CE-EMC FCC SDOC Modellnummer: Glasfaser -Pigtail

Detailinformationen
Anwendung: FTTH FTTB FTTX -Netzwerk Anschlusstyp: SC UPC
Länge: 3 Meter oder besonders angefertigt Farbe: angepasst
Kabeldurchmesser: 0,9/2,0/3,0 mm Ferrule Endgesicht: PC/UPC/APC
Mantelmaterial: PVC/LSZH/PE Produktname: Glasfaser -Pigtail
Wellenlänge des Senders: 1310nm Artikel: Optische Faser-Patch-Schnur
Fasertyp: G.652D/G.657A1/G.657A2 Netzwerk: 4g, 5g
Faser Nr.: 1 (einfach) Produkte: OM4 SC-SC 12Core Glasfaserkabel
Faserzählungen: 9/125um, 50/125um, 62,5/125U Renditeverlust: > 50 dB (UPC) /> 60 dB (APC)
Kabeldurchmesser: 2.0 3,0 mm Ferrule: APC
Polnischer Typ: UPC zu UPC Kabellänge: 1m/2m/3m/5m/10m/angepasst
Fasermodus: Einzelmodus Kabeltyp: Single-Mode/Multi-Mode
Anzahl der Kerne: Einzelkern Wellenlänge: 1260-1650nm
Optionale Anschlüsse: LC/SC/FC/ST Innere: Keramik
Polieren: PC oder UPC Merkmale: Hochleistung in IL&RL
Anzahl der Leiter: 1 Jacke: PVC/LSZH
Hervorheben:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Produkt-Beschreibung

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

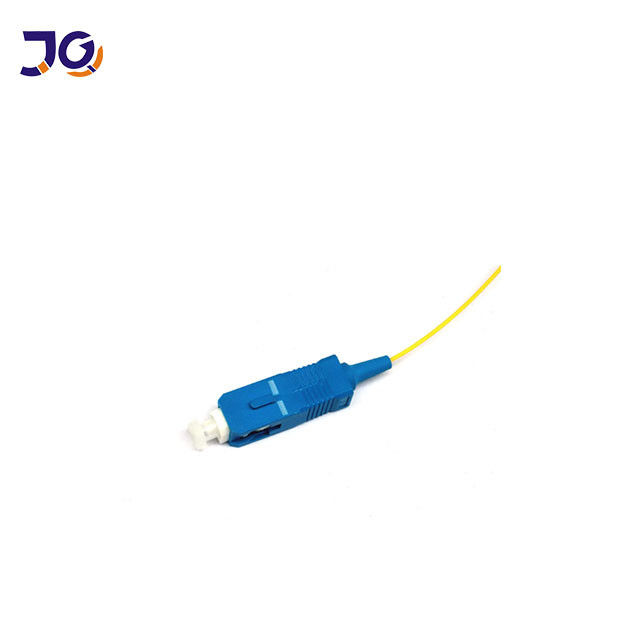

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

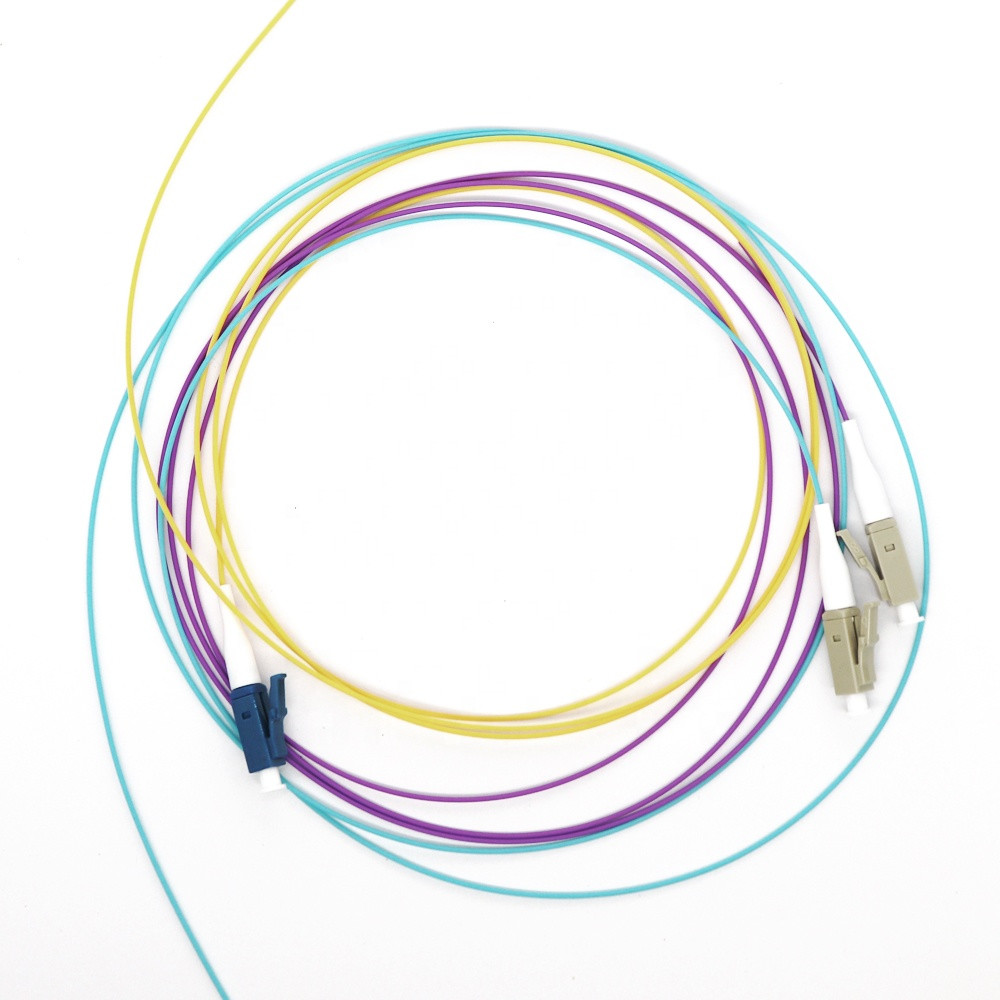

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

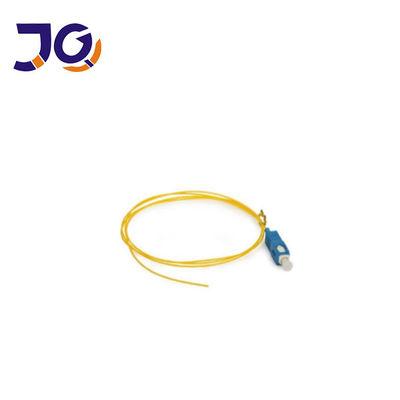

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
