SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable

50 Stück
MOQ
Inquiry for price
Preis
SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Material: LSZH /PVC
Farbe: Gelb/Schwarz
Wiederholbarkeit: ≤ 0,2 dB
Faseranzahl: Simplex oder Duplex
Steckertyp: SC/APC-SC/UPC
Länge: 1 m, 2 m, 3 m oder individuell
Polieren: PC/UPC/APC
Benutzerdefinierte Länge: 1/2/3/5/7/9/10m
Hervorheben:

SC APC to SC UPC fiber patch cord

,

LSZH fiber optic jumper cable

,

single mode low loss patch cord
Grundinformation
Herkunftsort: Guangzhou, China
Markenname: JQ/OEM/Customize
Zertifizierung: ISO 9001,ROHS CE-EMC FCC SDOC
Modellnummer: SM-SX-Patchkabel
Zahlung und Versand AGB
Verpackung Informationen: 100 Stück in einer Export-Cartoon-Box
Lieferzeit: 5-8 Werktage
Zahlungsbedingungen: Western Union, T/T, L/C, Alipay
Versorgungsmaterial-Fähigkeit: 5000 Stück pro Tag
Produkt-Beschreibung

SC APC to SC UPC Fiber Patch Cord Single Mode Simplex LSZH Cable



Product Introduction:
SC/APC to SC/UPC fiber optic patch cord is designed for high-speed and stable data transmission, using 9/125µm single-mode fiber with factory-terminated connectors for reliable performance.



Key Features:
 SC/APC to SC/UPC connectors
 9/125µm single-mode simplex fiber
 LSZH 3.0mm jacket for safe indoor use
 Low insertion loss and high return loss
 100% factory tested with QC traceability
 Available in 1m 2m 3m lengths



Applications:

  • FTTH and FTTX networks
  • Data centers and LAN systems
  • Telecom and CATV networks
  • Indoor fiber optic connections



Optical Characteristics



Parameter



PC



UPC



APC



Multi-mode



Insertion loss



≤0.3dB



≤0.3dB



≤0.3dB



≤0.3dB



Return loss



≥40dB



≥50dB



≥60dB



≥35dB



Exchange



≤0.2dB



Repeatability



≤0.2dB



Servicelife



>1000times



Tensile strength



>10kg



Temperature range



-40°C to +85°C





Technical Data



Type



Standard,Master



Style



LC,SC,ST,FC.MU,DIN,MPO,SC/APC,



FC/APC,LC/APC.MU/APC



Fiber



Singlemode/Multimode



50/125,62.5/125(Multi mode) OM2&OM1



50/125,10G(Multi mode)OM3



Cable



Simplex,Duplex



outer diameter:3.0mm,20mm,0.9mm



PVC or LSZH



Polishing Manner



UPC,SPC,APC(8°&6°)



Insertion Loss



≤0.1dB  (For Single mode Master)



≤0.25dB (For Single mode Standard)



≤0.25dB (ForMultimode)



Tested by JDSRM3750



                                    Return Loss

                                  (Single mode)



UPC≥50dB



SPC≥55dB



APC≥60dB (typ.65dB)



Tested by JDSRM3750



Repeat ability



≤0.1dB



Operating temperature



-400 C° to 850 C°



                          Geometry Requirement

                               (Single mode)



Ferrule Endface Radius



7mm≤R≤12mm (For APC)



10mm≤R≤25mm (For Standard)



Apex Offset≤30μm (For Master)



Apex Offset≤50μm (For Standard)



Under cut-50nm SU≤50nm



Tested by DORCZX-1

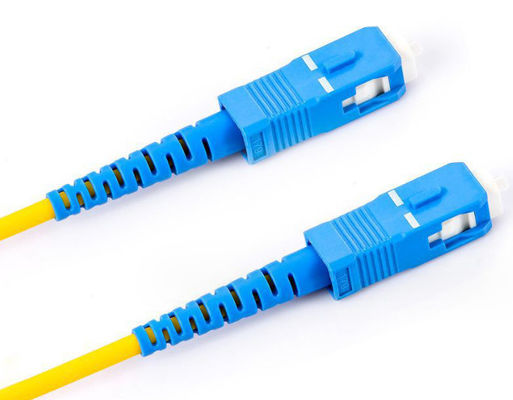

Connector Type

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 0



SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 1



Recommed Products



SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 2













Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 3

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 4

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 5







SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 6





Factory Pictures

SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 7
SC APC to SC UPC Fiber Optic Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m Single Mode Low Loss Durable 8


Fiber Patch Cord FAQ



Q1: What connectors does this patch cord use?
A: It uses SC/APC to SC/UPC connectors.



Q2: What type of fiber is included?
A: 9/125µm single-mode simplex fiber.



Q3: Is it suitable for indoor use?
A: Yes, it has an LSZH jacket for safety and low smoke.



Q4: What lengths are available?
A: 1m, 2m, and 3m options.



Q5: Is the cable tested before delivery?
A: Yes, it is 100% factory tested for performance.
