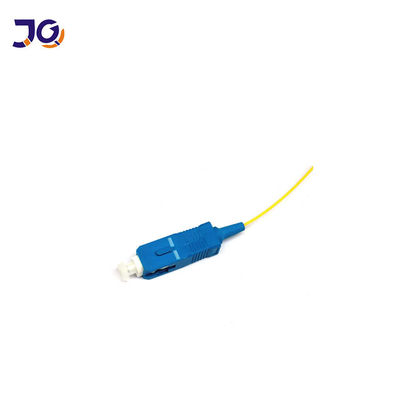

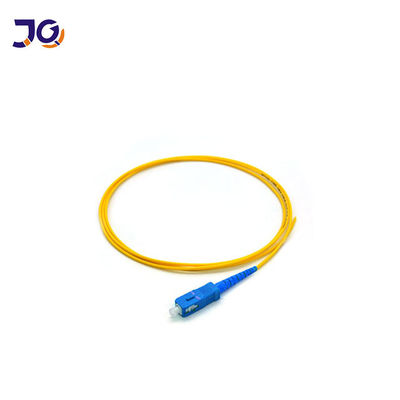

FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks

100 Stück
MOQ
FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Material: LSZH /PVC
Kabeldurchmesser: 0,9/2,0/3,0 mm
OEM und kundenspezifisch: Unterstützung
Fasertyp: SM, MM (50/125 um, 62,5/125 um)
Farbe: Orange, Gelb, Blau, Aquamarin
Verwenden: FTTH
Steckertyp: SC / LC / FC / ST / E2000
Stecker polnisch: UPC/APC/PC
Hervorheben:

FTTH fiber optic pigtail SC APC

,

62.5/125um telecom fiber pigtail

,

SC APC connector fiber patch cord
Grundinformation
Herkunftsort: China
Markenname: Jiqian/Customize/ OEM
Zertifizierung: ISO9001 ROHS CE-EMC FCC SDOC
Modellnummer: Faserzopf
Zahlung und Versand AGB
Verpackung Informationen: Paketkarton
Lieferzeit: 2-4 Tage
Zahlungsbedingungen: Western Union, T/T, L/C
Versorgungsmaterial-Fähigkeit: 1000 Stück pro 2 Tag
Produkt-Beschreibung

FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks

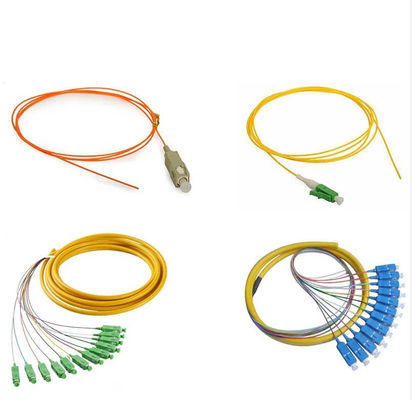

Fiber Optic Pigtail Features

  • Compatible with SC, LC, FC, MU, ST, MT-RJ, and E2000 connectors

  • PC, UPC, APC, and SPC polishing options available

  • Optional cable diameters: 0.9 mm, 2.0 mm, 3.0 mm

  • Single mode (9/125) and multimode (50/125, 62.5/125) fiber options

  • Supports simplex and duplex configurations

  • Low insertion loss and high return loss

  • Good interchangeability and long service life

Fiber Optic Pigtail Applications

  • FTTH and FTTx access networks

  • Telecom and data center fiber termination

  • Optical distribution frames (ODF) and patch panels

  • LAN and WAN network installations

  • Fiber splicing and network maintenance

Size Information
Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80
FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks 0
Size Information
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652D/G655/G657A1/G657A2
OM1
OM2/OM3/OM4
Fiber Diameter (um)
9/125
62.5/125
50/125
Cable OD (mm)
0.9/1.6/1.8/2.0/2.4/3.0
Endface Type
PC
UPC
APC
UPC
UPC
Typical Insertion Loss (dB)
<0.2
<0.15
<0.2
<0.1
<0.1
Return Loss (dB)
>45
>50
>60
/
Insert-pull Test (dB)
<0.2
<0.3
<0.15
Interchangeability (dB)
<0.1
<0.15
<0.1
Anti-tensile Force (N)
>70
Temperature Range (℃)
-40~+80

FAQ

1. Are you a real manufacturer?
Yes. We are a professional factory located in Guangzhou, China. Factory visits are welcome.



2. What is your minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are available to support new projects.



3. Can I get a sample?
Yes. Free samples are available. Customers only need to cover the express shipping cost.



4. What payment methods do you accept?
We accept T/T, L/C, Western Union, and PayPal.



5. What is the delivery time?
Normally 3–7 working days, depending on order quantity and product specifications.



6. Do you support customized products and logo?
Yes. We provide OEM & ODM services, including customized specifications and branding.
