Startseite /Produkte/Innenlichtwellenleiter/GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center

GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center

2 km
MOQ
Inquiry for price
Preis
GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Markenname: Jiqian/Customize
Anzahl der Faser: 12 24 48 Kern
Mantel: LSZH/PVC
Anwendung: Telekommunikation
Zertifizierung: ISO9001 ROHS CE-EMC FCC SDOC
Temperatur: -40 bis +70 ° C
Verwendung: Innengebäudekabel
Faser: Mehrkerne Fujikura/ YOFC/ Fujikera G652D
Hervorheben:

indoor fiber optic cable FTTH

,

indoor fiber optic cable LSZH

,

indoor fiber optic cable tight buffer
Grundinformation
Herkunftsort: Guangzhou, China
Markenname: Jiqian/Customize/ OEM
Zertifizierung: ISO9001 ROHS CE-EMC FCC SDOC
Modellnummer: GJFJV
Zahlung und Versand AGB
Verpackung Informationen: Holztrommel
Lieferzeit: 3-5 Tage, es hängt von der Bestellmenge ab.
Zahlungsbedingungen: L/C, T/T, Western Union, Alipay
Versorgungsmaterial-Fähigkeit: 4500 pro Monat
Produkt-Beschreibung



24 Core GJFJV Indoor Fiber Optic Cable G652D Single Mode LSZH Tight Buffer FTTH LAN Data Center Cable



Product Features

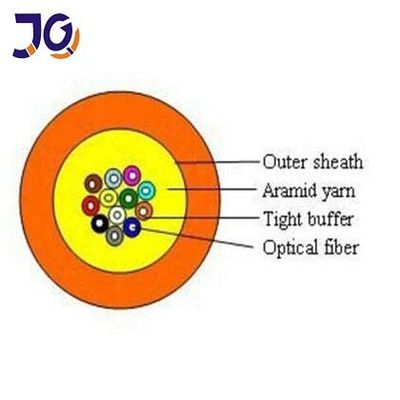

  • Tight-buffered fiber structure for easy stripping and splicing
  • Aramid yarn reinforcement for strong tensile strength and durability
  • Flame-retardant LSZH or PVC jacket for safe indoor installation
  • Low attenuation and stable signal transmission
  • Compact and lightweight design for flexible indoor deployment

Applications

  • FTTH indoor cabling systems
  • Data centers and server rooms
  • LAN and enterprise networks
  • Telecom equipment connections
  • Indoor backbone and distribution networks
Technical Parameters
Cable
Count		 Outside
Diameter

Tight

buffer
Diameter

 Weight Minimum
allowable Tensile
Strength
(N)		 minimum allowable
Crush Load
(N/100mm)		 Minimum Bending
Radius
(MM)		 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (℃)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60
4 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60

GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center 0

FAQ – GJFJV Indoor Fiber Optic Cable



Q1: What is GJFJV fiber optic cable used for?
A: It is mainly used for indoor FTTH networks, data centers, LAN systems, and telecom equipment connections.



Q2: What fiber types are available?
A: It supports single-mode fibers such as G652D and can also be customized with other fiber types.



Q3: What jacket materials are available?
A: The cable can be produced with PVC or LSZH jackets for different indoor safety requirements.



Q4: What is the maximum fiber count?
A: GJFJV cables can support up to 24 cores or customized fiber counts.



Q5: Is the cable easy to install and splice?
A: Yes, the tight-buffered design makes stripping, splicing, and installation simple and efficient.

Größe und Tag:

GJFJV-Innenlichtwellenleiter

GJFJH-Verteilungs-Lichtwellenleiter

indoor fiber optic cable FTTH
