Startseite ProdukteADSS-LichtwellenleiterADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial
ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial
ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial
Kontakt

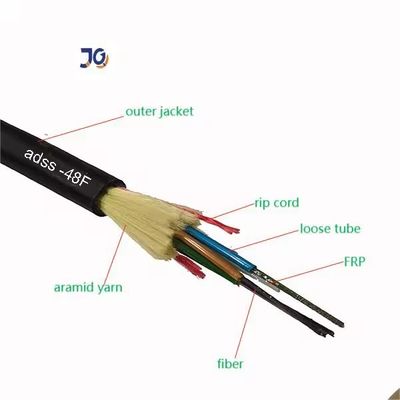

ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial

Min Bestellmenge : 1 km Verpackung Informationen : Holztrommel
Lieferzeit : 5-8 ARBEITSTAGE Zahlungsbedingungen : L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit : 4500KM pro Monat
Herkunftsort: Guangzhou, China Markenname: JQ/OEM/Customize
Zertifizierung: ISO9001 ROHS CE-EMC FCC SDOC Modellnummer: ADSS-24B1

Detailinformationen
Fasertyp: YOFC oder Fiberhome auf Anfrage Faserzahl: 4 -144 Kern
Farbe: Schwarz, angepasst Jackenmaterial: PE/MDPE/HDPE oder AT
Name: ADSS-Glasfaserkabel Stärke Mitglied: Zentrales Stärke-Mitglied FRP
Spanne: 50/100/200/300/400m Installation: Selbsttragende Luftröhre
Hervorheben:

ADSS fiber optic cable outdoor aerial

,

all dielectric self supporting fiber cable

,

ADSS cable 100m span

Produkt-Beschreibung

ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial

Features

  • All-dielectric self-supporting design

  • Strong mechanical and temperature performance

  • Hydrolysis-resistant loose tube

  • 100% core filled for water blocking

  • Aramid yarn reinforcement for high tensile strength

  • Excellent crush resistance and flexibility

  • FRP central strength member

Application

  • Aerial installation (ADSS)

  • Long-span overhead communication lines

  • Power line communication where no metallic components are allowed

Temperature Range: −40°C ~ +70°C




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Data



Span : 100m



under 110kv



24core

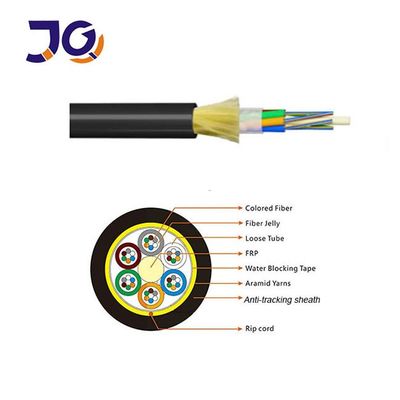

structural

parameter



Central strength components : FRP



Diameter : 1.5mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable

10.0mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



85kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



Young's modulus



7.8 kn/mm2



Coefficient of thermal expansion



1.810-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm



4-144 core ADSS Fiber Optic Cable

Fiber

count

 Structure

Fibers

per tube

Loose tube

diameter

(mm)

CSM diameter

/pad diameter(mm)

Nominal Thickness

of outer jacket(mm)

Cable diameter

(mm)

Cable

Weight

(kg/km)
4 1+6 4 2.0±0.1 2.3/2.3 1.7 10.5±0.5 81
6 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 81
8 1+6 4 2.0±0.1 2.3/2.3 1.7 10.5±0.5 82
12 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 82
24 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 83
36 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 84
48 1+6 12 2.2±0.1 2.6/2.6 1.7 11.1±0.5 93
72 1+6 12 2.2±0.1 2.6/2.6 1.7 11.1±0.5 95
96 1+8 12 2.2±0.1 3.0/3.9 1.7 12.5±0.5 122
144 1+12 12 2.2±0.1 3.5/6.4 1.7 15.5±0.5 185





Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.
Other length is also available if required by buyer.

Cable type                                             Drum
Height (mm) Width (mm) Inner diameter (mm)

Length

(km)

 Drum type
ADSS-4 900 760 500 2 Plywood wood drum
ADSS-6 900 760 500 2 Plywood wood drum
ADSS-8 900 760 500 2 Plywood wood drum
ADSS-12 900 760 500 2 Plywood wood drum
ADSS-24 900 760 500 2 Plywood wood drum
ADSS-36 900 760 500 2 Plywood wood drum
ADSS-48 950 760 500 2 Plywood wood drum
ADSS-72 950 760 500 2 Plywood wood drum
ADSS-96 1000 760 500 2 Plywood wood drum
ADSS-144 1200 760 500 2 Plywood wood drum



ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial 0

ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial 1


Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

ADSS Fiber Optic Cable All Dielectric Self Supporting 100m Span Outdoor Aerial 2





FAQ



1. Are you a trading company or manufacturer?
We are a professional manufacturer with 10+ years of experience in R&D and production of fiber optic cable, drop cable, and patch cord. Our factory is located in Guangzhou, China. Welcome to visit us.



2. How is the quality of your products?
All fibers are 100% tested before delivery. After price confirmation, free samples can be provided for quality evaluation.



3. Do you accept small orders?
Yes, small orders are welcome. We support new customers and new projects—business always starts from small quantity.



4. What is the delivery time?
Usually 3–7 working days depending on order quantity. We will arrange your goods as soon as payment is received.



5. Do you offer OEM service?
Yes, OEM/ODM is available. We can print your logo on the product, and custom designs are welcome.
