Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory

Kontakt

Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	Guangzhou China	Markenname:	JQ/OEM/Customize
Zertifizierung:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GYTA 12core/24core/48core

Detailinformationen
Fiber type:	G652D	Oem:	Available
Application:	Outdoor/Underground/Aerial/Indoor/FTTH (Fiber to the Home)/Fiber to the Building	Number of conductors:	24core 48core 72core
Structure:	Stranded loose tube	Operating temperature:	-40 ~ +60 C
central strength member:	Aluminium Wires	Fiber Count:	2/4/6/8/12/24/48/96
Manufacturer:	Yes	Jacket:	PVC\LSZH \LSOH \PE \HDPE
Connection Structure:	Stranded loose tube	Outer Jacket:	PE//HDPE/LSZH/AT
Sheath:	PE/HDPE/MDPE	Port:	Guangdong /Shenzhen
Instructure:	PSP enhancing moisture-proof	Outer Jacket Materail:	Aluminum clad steel
Fiber Type:	Single-mode/Multimode	Cable Diameter:	11±0.5mm
Cable Structure:	Loose Tube/Armored/Non-armored	Type:	Fiber Optic Cable
Armored Tape:	Aluminium tape
Hervorheben:	aluminum tape armored outdoor fiber optic cable , direct burial outdoor fiber optic cable , wholesale outdoor fiber optic cable

Produkt-Beschreibung

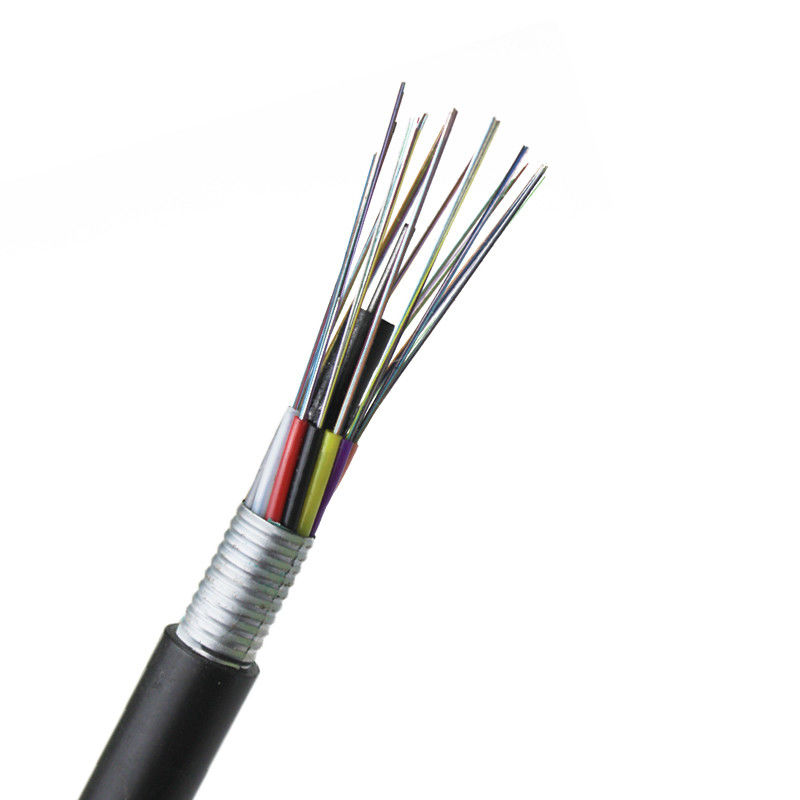

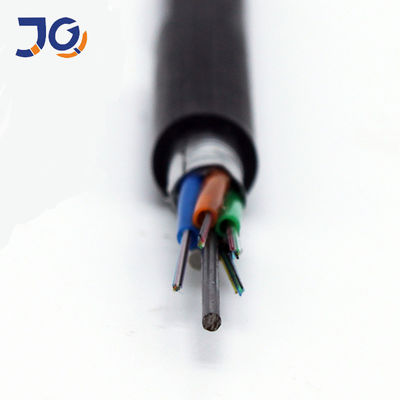

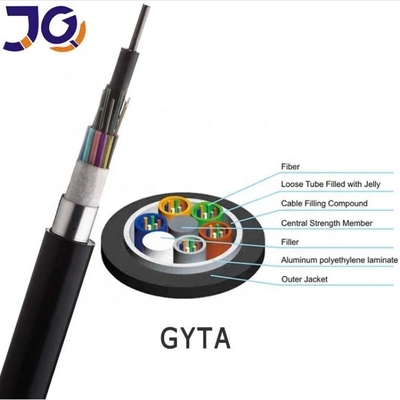

GYTA Armoured 96-Core Outdoor Fiber Optic Cable

This high-density GYTA cable is designed for duct and aerial installation. It consists of loose tubes filled with water-blocking compound, wrapped longitudinally with PSP (corrugated steel tape) for excellent protection against crushing and moisture. A single PE sheath completes the robust structure. Ideal for metropolitan networks, bureau communications, and access networks where high fiber count and durability are required.

Application:

1 ,Interbuilding voice or data communication backbone.

2 ,Installed in duct, underground conduit .

Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength λcc		<1260 nm	<1450 nm

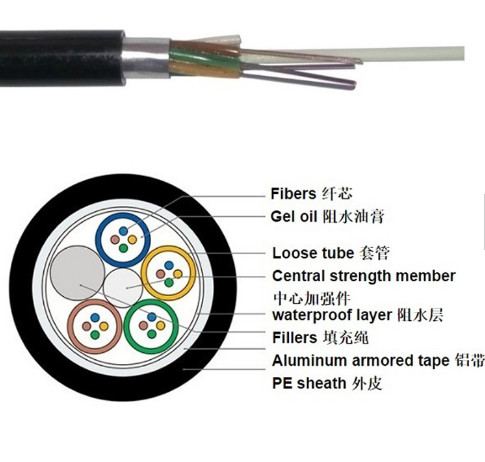

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19.0	325	12	24(2 layers)	2500	600	1000	300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

Company Information.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a specialized manufacturer based in Guangzhou, China. The company supplies a full range of fiber optic products, including outdoor and indoor cables, FTTH drop cables, and fiber patch cords. All items comply with ISO9001, FCC, RoHS, and CE international standards. In addition, Jiqian offers OEM and customized cable design services to meet diverse customer requirements.


Support OEM:

Print your logo on jacket : Customer logo+ GYTA 12 Core +G652D Cable .....2024 ....Meter

Such as :

Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory 3

Delivery:

For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details

Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

FAQ

Are you a manufacturer?
Yes, we are a factory located in Guangzhou, China. You are welcome to visit us.
What is the minimum order quantity (MOQ)?
Our MOQ is 1KM. Trial orders for new projects are also accepted.
Can I request a sample?
Yes, we offer free samples. Customers only need to cover the courier cost.
What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.
What is the delivery time?
Normally 3–7 working days, depending on order quantity.
Do you provide customized products and logo service?
Yes, OEM and ODM services are available. Please feel free to contact us.
