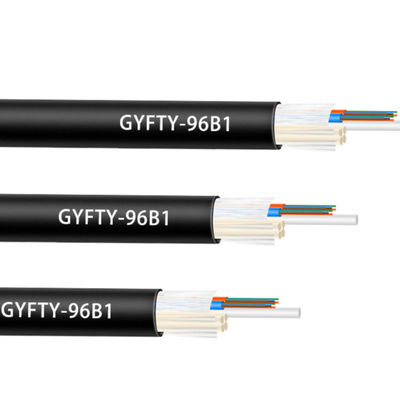

GYFTY Outdoor Fiber Optic Cable Non-Metallic Strength Member 2-144 Cores

Produkt-Beschreibung

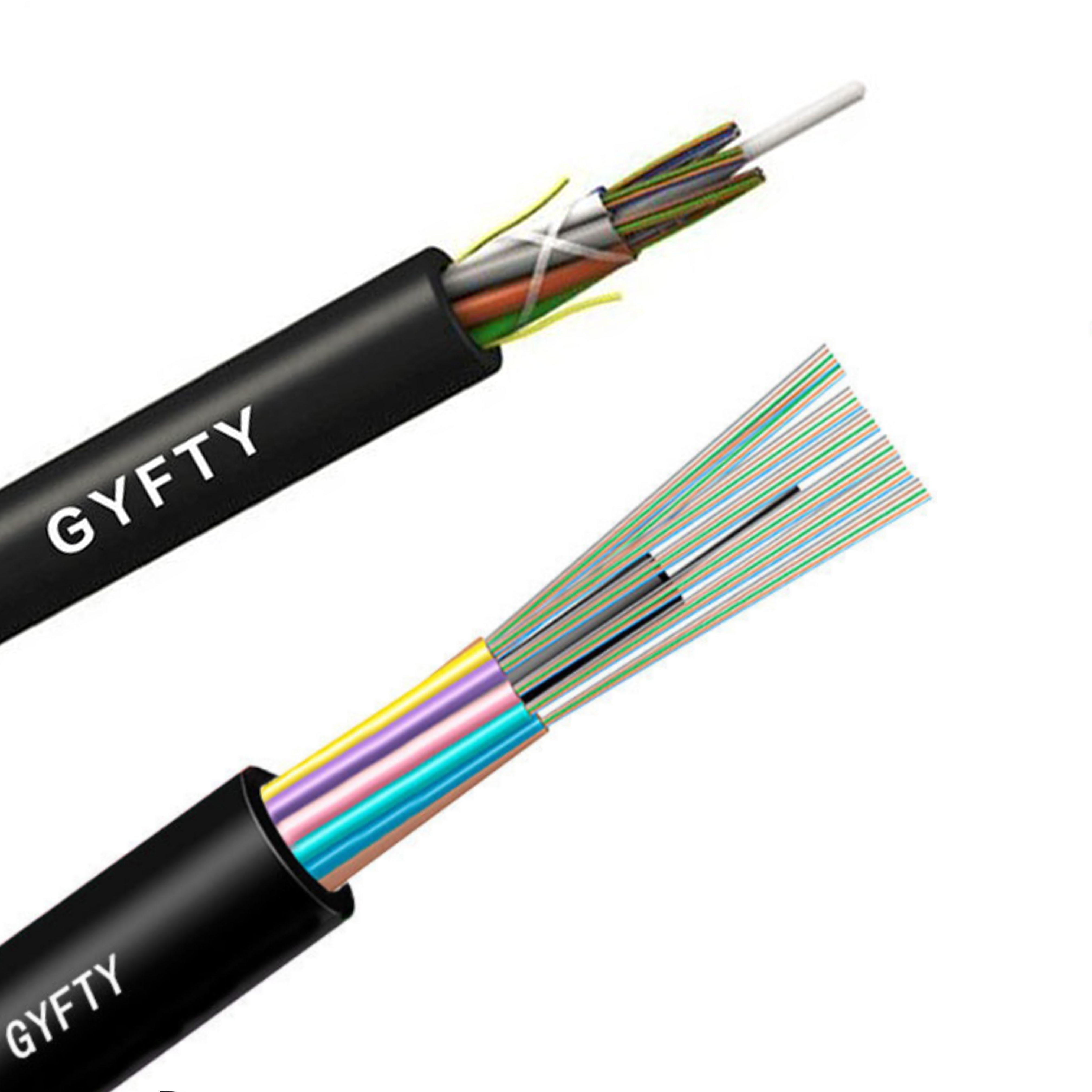

GYFTY Non-Metallic Strength Member Outdoor Fiber Optic Cable (Non-Armored)

Product Description:
The 200/250μm fibers are housed in a loose tube made of high-modulus plastic and filled with water-blocking gel. A central non-metallic strength member, made of Fiber Reinforced Plastic (FRP), ensures structural stability. The tubes and fillers are helically stranded around the FRP core, forming a compact and circular cable structure. The core is further protected with filling compound against moisture ingress, and the cable is finished with a durable polyethylene (PE) outer sheath.

Product Features:

• Excellent mechanical strength and temperature resistance

• High-strength, hydrolysis-resistant loose tube

• Special gel filling provides reliable fiber protection

• Soft and flexible design with strong crush resistance

• Enhanced waterproof performance through:

  • Central non-metallic strength member

  • Fully gel-filled loose tube structure

  • Complete fiber filling for moisture blocking



Product Standard / PRODUCT

·GYFTY cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Optical Characteristics / PRODUCT

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥200MHZ·km
	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters / PRODUCT

Cable Type	Fiber Count	Loose tube count	Filler count	Cable Diameter Mm	Cable Weight Kg/km	Tensile Strength Long/short term N	Crush Resistance Long/short term N/100mm	Bending Radius Static/dynamic mm
GYFTY-2~6	2~6	1	4	9.0	88	800/1500	500/1000	15D/30D
GYFTY-8~12	8~12	2	3	9.0	88	800/1500	500/1000	15D/30D
GYFTY-14~18	14~18	3	2	9.0	88	800/1500	500/1000	15D/30D
GYFTY-20~24	20~24	4	1	9.0	88	800/1500	500/1000	15D/30D
GYFTY-26~30	26~30	5	0	9.0	88	800/1500	500/1000	15D/30D
GYFTY-32~36	32~36	5	0	9.0	88	800/1500	500/1000	15D/30D
GYFTY-38~48	38~48	5	0	9.0	88	800/1500	500/1000	15D/30D
GYFTY-50~60	50~60	5	0	9.0	88	800/1500	500/1000	15D/30D
GYFTY-62~72	62~72	6	0	9.5	100	1000/2000	500/1000	15D/30D
GYFTY-74~84	74~84	7	1	10.5	120	1000/2000	500/1000	15D/30D
GYFTY-86~96	86~96	8	0	10.5	120	1500/2500	500/1000	15D/30D
GYFTY-98~108	98~108	9	1	11.5	150	1500/2500	500/1000	15D/30D
GYFTY-110~120	110~120	10	0	12.0	150	1500/2500	500/1000	15D/30D
GYFTY-122~144	122~144	12	0	13.0	150	1500/2500	500/1000	15D/30D
GYFTY-146~216	146~216	18	0	13.0	150	1000/2000	500/1000	15D/30D

storage/Operating Temperature : -40℃ to + 70℃
